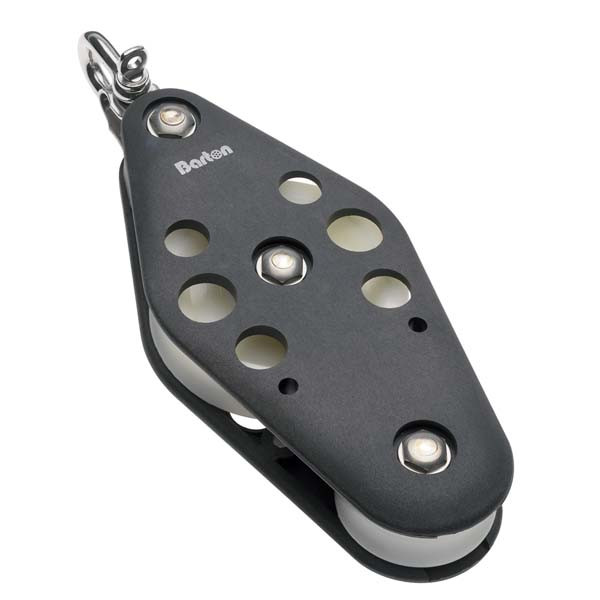

Barton Marine 05420 - Size 5 - Fiddle - Reverse Shackle Block - MW

Name: Barton Marine 05420 - Size 5 - Fiddle - Reverse Shackle Block - MW
Brand: Barton Marine (MW)
SKU: BAR-05 420
Availability: InStock

SKU BAR-05 420 MFR Barton Marine (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Sailboat Blocks

Series 5 54mm Crusier Blocks - Fiddle - Reverse Shackle

Reverse Shackle
Removable shackle that can be set in-line or at 90° to the sheave.

This range of high load cruiser blocks are of rugged construction, featuring high quality injection moulded side plates with all loadcarrying components from 316 grade stainless steel. Side plates are through-bolted and riveted for added strength and security.
This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveller systems.
A comprehensive range of cam cleat, fiddle, and fiddle and cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:185mm (7.28")
Sheave Size:
Single: 54mm x 17mm (2-⅛" x ⅝")
Fiddle: 38/64mm x 17mm (1-½ / 2-½" x ⅝")
SWL: 750kg (1,650lbs)
Max Rope Diameter: 12mm (⁷⁄₁₆")
Break Load: 1,500kg (3,300lbs)
