Digital 992-MW-S Antenna 8 Wide Band Antenna w/20 Cable - MW

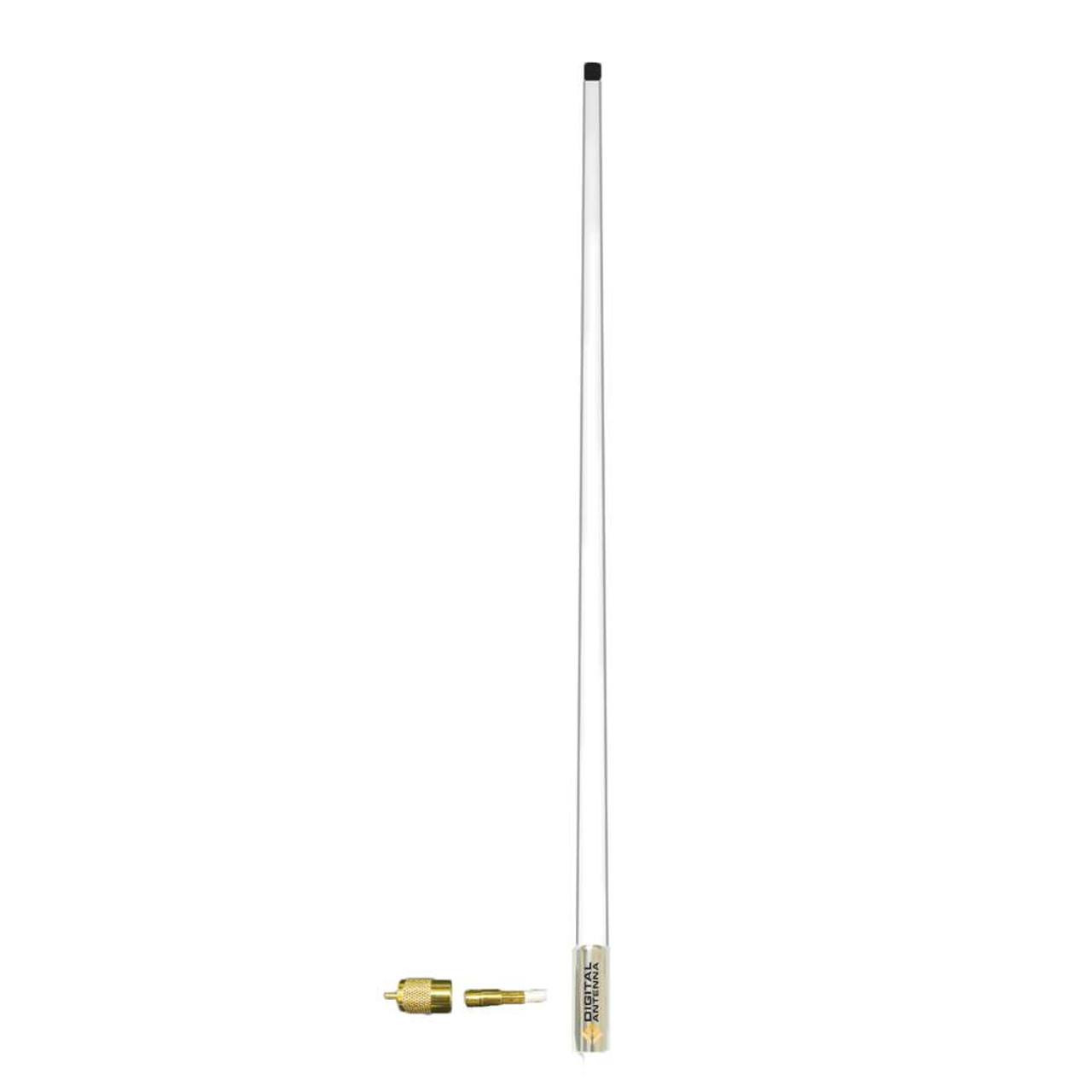

8' Wide Band Antenna with 20' Cable
Utilizing technology designed for military and commercial applications, Digital Antenna delivers our new, highly advanced 8' Wide Band VHF Antennas to the marine industry. These antennas provide tactical maritime users with a high-performance solution for broadband VHF communications.
Featuring a tremendous bandwidth of 134 to 176 MHz, a nominal 6dB gain, and the ability to withstand continuous RF power up to 150 watts, the new antennas facilitate high-quality communications across a normally hard-to-cover band. An exclusive patent-pending electrical design with an internal ground plane allows the antenna to maintain a low radiation pattern, resulting in exceptional communication capability over a wide bandwidth.
Designed to meet the military’s rigorous MIL-STD-810 environmental engineering testing, as well as typical marine standards for high seas applications, the 992-MW and 992-MB antennas, are built to endure environmentally harsh conditions. They are designed for use with a multitude of services including auxiliary civil services, 2-meter amateur radio band, VHF business band, multi-use radio service (MURS), 2-way land mobile, VHF marine radio, narrowband FM, VHF SATCOM, Automatic Identification System (AIS) and NOAA weather stations.
Digital Antenna’s quality components include a rugged hard-coated anodized finish over an aircraft-grade aluminum ferrule, soldered brass radiating elements, power directing ferrite choke bead, and high-gloss UV stable coating. Manufactured in the USA by skilled craftsmen, our antennas are hand tested and tuned to assure the highest possible performance, quality, and durability. Lifetime limited warranty.
Features:
- Broadband 134-176 MHz
- Withstands continuous RF power up to 150 watts
- Aircraft-grade aluminum ferrule
- Completely sealed
- High performance 6dB gain
- Sleek mono-color design
- Lifetime limited warranty
- Mount: Standard 1”–14 threaded base
- Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter
- Cable: Includes 20’ exclusive low-loss, tinned braid, foil shielded, UV stable DA195 Ultra-Flex marine cable
Specifications:
- Length (Inches): 94"
- Box Dimensions: 3"H x 3"W x 95"L WT: 2.5 lbs
- UPC: 839494004726
Brochure (pdf)
