Fulton Dual-Ball Adjustable Trailer Ball Mount - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

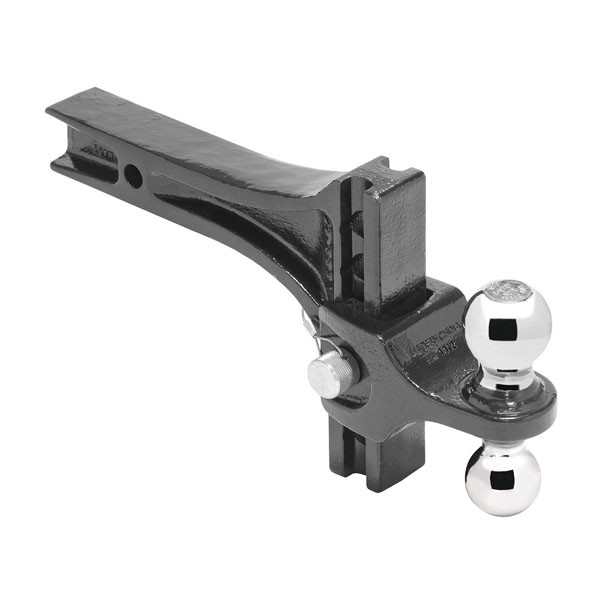

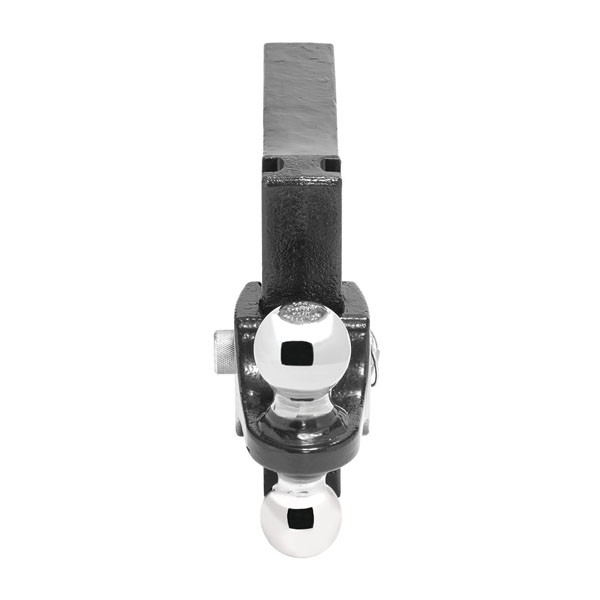

Fulton Class V Dual-Ball Adjustable Trailer Ball Mount
The Fulton Dual-Ball Adjustable Ball Mount is the perfect option for towing multiple trailers of varying heights and couplers. This adjustable mount takes only a pull of the pin and a turn to get ready for towing with the most common hitch ball sized. The height is easily nd securely adjusted up to 10-1/2" with pins included. Includes 2" and 2-5/16" hitch balls.
Features:
- Adjustable height
- Cast shank, variable height capability
- Knurled bolt pins with secure lanyard
- Black powder coat finish
- 3 Year limited warranty
Specifications:
- Fits 2" receivers
- Rated up to 14,000 lbs. GTW
- Adjust height up to 10-1/2"
- Load Rating Class: V
| Part Number | Hitch Ball Sizes | GTW (lbs.) | Length | Max Rise | Max Drop |
| 63071 | 2" Ball | 10,000 lbs. | 12" | 4-5/8" | 5-7/8" |
| 2-5/16" Ball | 14,000 lbs. |
How to Select the Right Fulton Trailer Hitch Ball Mount
The below information is sourced from the manufacturer.
- Measure from the ground to the top of the hitch.
- Measure from the ground to the (inside) top of the trailer coupler (when level).
- Subtract the height of the hitch ball from the coupler measurement (most are 2-1/2" - 3" high)
The difference in the two measurements is the amount of ball mount rise or drop is required.
For the specifications above, keep in mind the following:
- Length = distance from the center of the ball hole to the center of the pin hole
- Rise = Distance from the top of the shank to the top of the ball platform
- Drop = Distance rom the top of the shank to the top of the ball platform
Click to Download Fulton 63071 Dual-Ball Mount Installation Instructions
