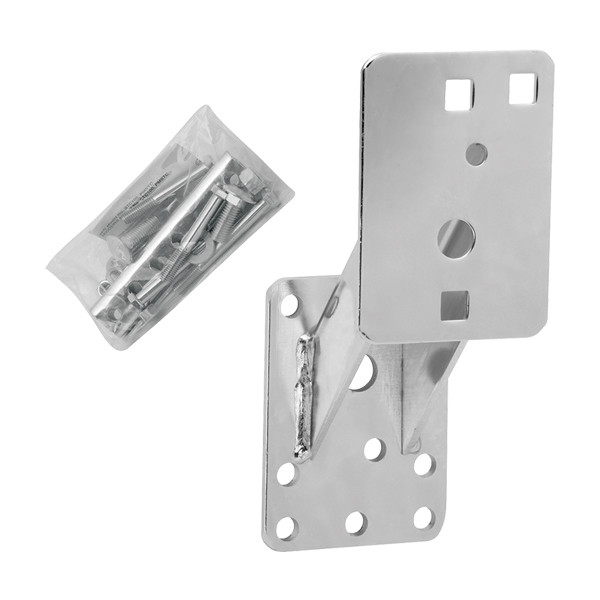

Fulton Bolt-On Spare Tire Carrier - 4-5 Lug

The Fulton Bolt-On Spare Tire Carrier is a heavy-duty tire carrier that fits all trailer tongues up to 3" wide by 4" high. This spare tire carrier has an adjustable bolt circle to fit both 4 and 5 lug wheels.

Heavy-duty, welded and reinforced steel plate construction
Zinc-plated to resist corrosion
Adjustable bolt circle to fit both 4 and 5 lug wheels
Fits all trailer tongues up to 3" wide by 4" high
Includes zinc-plated mounting hardware and instructions
Security locking hole to lock wheel and bracket to trailer using a security cable and lock (cable and lock sold separately).
5 Year limited warranty

How to Install a Fulton Bolt-On Spare Tire Carrier

Pre-Installation

Ensure the trailer frame member is strong enough to withstand the stresses caused by high speed traveling and the weight of the tire.

Note: there shouldn't be any vibration of the spare tire or frame member

Ensure you have clearance between the spare tire and the car/truck bumper. This must be checked when the vehicle is in a sharp turning radius, especially true on trucks with step bumper hitches.
When mounting the spare tire carrier on a side channel, it is very important to have ground clearance between the tire and the road.

Note: You must allow extra clearance for bad roads, curbs, and road gullies.

Installation

Install the carrier over the tire channel. The carrier faces away from the trailer.
Install (4) 3/8" bolts through the carrier and over the under the trailer channel.
Slide (1) lockwasher and (1) locknut on each bolt and torque the locknut to 20 ft. lbs.
For mounting the tire, install the carriage bolts through the carrier and slide a pushnut onto each bolt. Install the tire.
Slide a washer and lockwasher over the bolt.
Install and torque the locknut to 45 ft. lbs.

-Information from Fulton's Spare Tire Carrier Installation Instructions-

Click to Download Fulton Spare Tire Carrier Installation Instructions
