SeaStar Hydraulic Universal Mount Inboard Cylinders

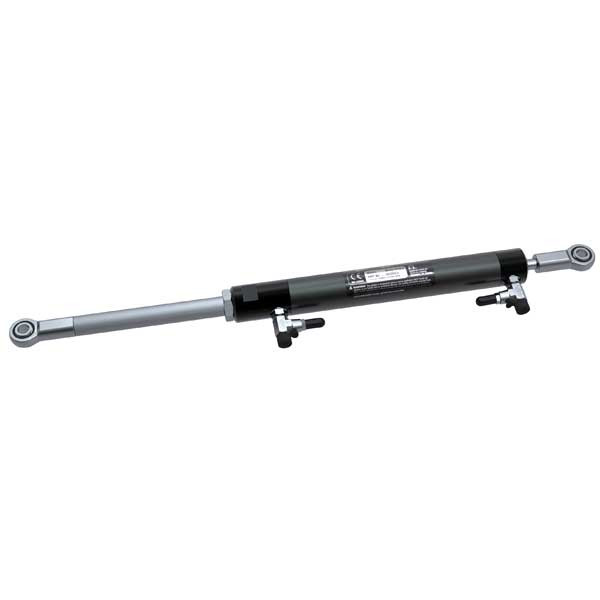

The HC5322-3 and HC5323-3 balanced cylinders are double rod ended, each end held in place with internal wire ties. Every cylinder is equipped with a swivel joint at each end. One provides for a fixed mount attachment point at the end of the housing to protect the moving rod. The other swivel joint, located at the rod end, allows for free movement of the cylinder without binding when attached to the rudder arm.
HC5322-3 Cylinder Assembly 125-7”
- Replaces K-18
- Actuation Stroke Length : 7"
- Maximum Pressure Rating : 1000 psi
HC5323-3 Cylinder Assembly 125-9”
- Replaces K-19
- Actuation Stroke Length : 9"
- Maximum Pressure Rating : 1000 psi
