Dual Rack SSC135 Back Mount Steering Cable - MW

Name: Dual Rack SSC135 Back Mount Steering Cable - MW
Brand: Dometic (MW)
SKU: TEL-SSC13506.1
Availability: InStock

SKU TEL-SSC13506.1 MFR Dometic (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Steering Cables & Kits

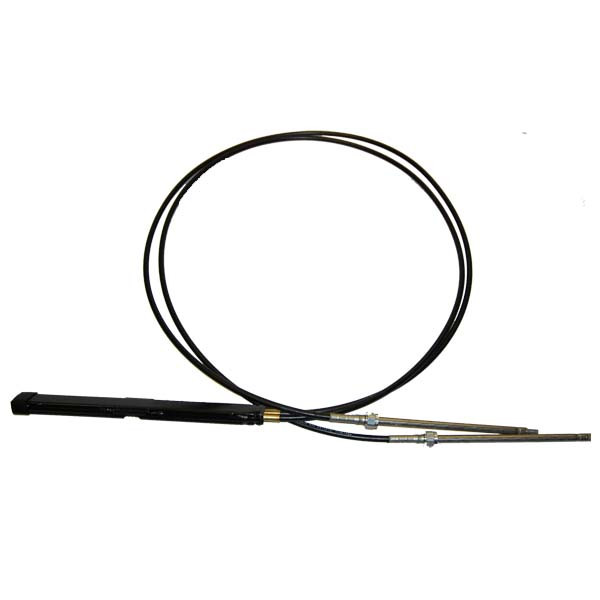

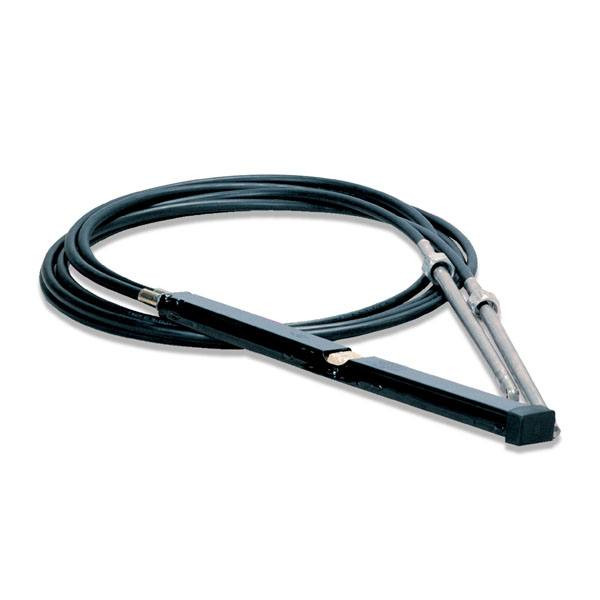

SeaStar Dual Rack SSC135 Back Mount Steering Cable by Dometic

SeaStar dual rack and pinion steering cables are specifically engineered for high-performance boaters wanting No Feedback technology. SeaStar has combined its patented No FeedBack technology with the incredible precision and control of a dual cable rack and pinion system. This replacement dual rack and pinion steering cable generally installs with no dash alteration and will provide years of performance for boats equipped with a non-power assisted outboard.

Twin rack cables fit SH5210P, SH5230P, SH91610P, and SH91630P helms.

How to Measure Steering Cables “Measure Twice. Order Once.”

Replacement of Existing Cable: If possible, find the part number stamped on the plastic jacket of the old cable. If you removed the old cable, measure for the replacement cable as follows:

For Rack Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket (“Y” dimension shown in above drawing) in inches, add 30″, and round up to next foot. Order that length cable.

New Installation: Measure cable routing path from wheel center line to engine connection, as follows: A = Center line of wheel to gunwale (or deck, if routed downward), B = Dash to transom, C = Gunwale to centerline of cable connection at centered tiller.

For Cable Installations through the Engine Tilt Tube: Add A, B & C + 6″, then round up to the next foot. Order that length cable.

For Cables Mounted to Transom, Splashwell or Stringer: Add A, B & C, then subtract 6″ and round up to the next foot. Order that length cable.

TYPICAL SINGLE STATION ROUTING

A single-cable, starboard drive push-pull mechanical cable system is shown in this diagram. If your mechanical system is different than the one depicted and/or you have any questions about mechanical steering after reviewing this guide, please contact Dometic (Mechanical) Technical Service at (610)-495-7011 or www.Dometic.com

Cable routings (such as those found on pontoon boats) may vary from this drawing. Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.
