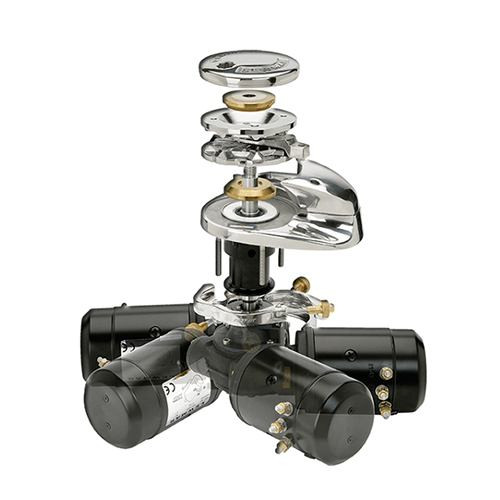

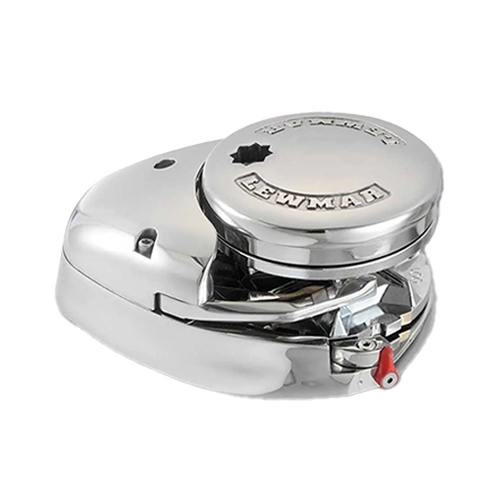

Lewmar V2 Vertical Windlass Kit 6672011108-138
- Manual Chain Release Free-Fall
- Cone clutch for smooth, easy control
- Fall safe anchor lock
- Robust/reliable worm gearbox
- Optional manual override motor gearbox
- 12 Volt
- For Boats up to 45ft
- Complete Kit V@ Windlass, Rocker Switch, Solenoid, Circuit Breaker
Anchor Rode Compatibility
3/8" Chain & 1/2"-9/16" 3 Strand Rope or 5/8" 8-Plat Rope
Specifications:
- Motor Power: 700W
- Max Pull: 1433 lbs.
- Working Load: 358 lbs.
- Max Line Speed: 69 ft/min
- Normal Current Draw: 80A
- Circuit Breaker: 90A
- Approx Weight: 42lbs.
Includes:
| Part No. | Description | Qty |
|---|---|---|
| 68000813 | V2 12V FF MG-BOX ASSY | 1 |
| 68000318 | 12V SF WINDLASS CONT DC92-235P | 1 |
| 68000828 | V2V3 Go FF DECK UNIT | 1 |
| 68000362 | V1V2V3 GYPSY/STR KIT 002 | 1 |
| 65002489 | WINDLASS X HANDLE | 1 |
| 68000349 | CIRCUIT BREAKER 90 AMP 9327 | 1 |
| 68000593 | GUARDED ROCKER SWITCH | 1 |
