Lewmar V3 12V Vertical Windlass - Gypsy Only

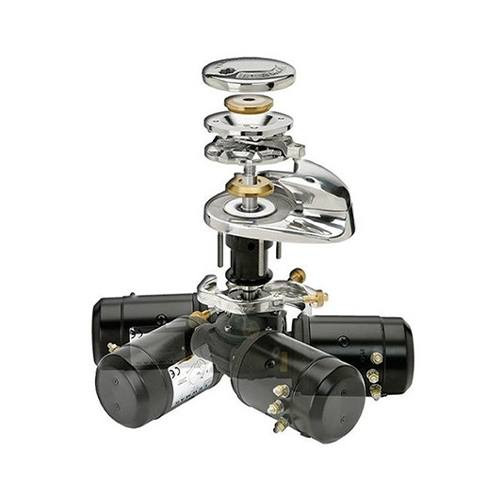

The Lewmar V3 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.
Features:
- FastFit
- W.A.R.P drum
- Rope-chain gypsy
- Manual chain release (Free Fall)
- Rope size: 5/8"
- Fall safe anchor lock
- Cone clutch
- Robust worm gearbox
Specifications:
- Motor Power: 1000Watts
- Max Pull: 1962 lbs
- Working Load: 473 lbs
- Max Line Speed: 92' per minute
- Normal Current Draw: 85Amps
- Circuit Breaker: 110Amps
Click here to download V3 Vertical Windlass Owner's Manual
