Simrad 000-13287-001 OP12 Autopilot Controller - MW
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
Purchasing Code Required
To order this product online, please contact us with the quantity you need
and your ZIP / postal code to receive your purchasing code.
Some locations are restricted at this time.
Already have a code? Enter it below to unlock pricing and purchasing.

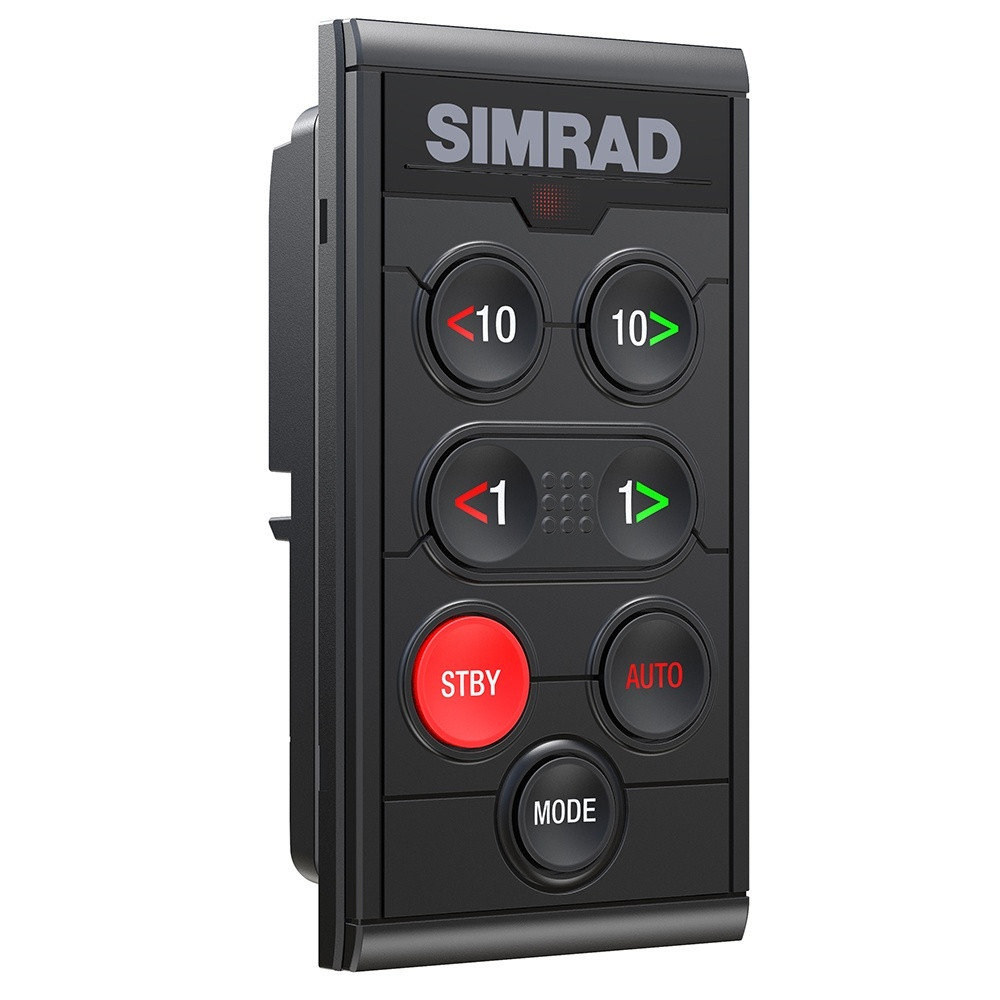

OP12 Autopilot Controller
The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.
Features:
- Intuitive operation
- Easy installation
- Combine with an IS42 display for full autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
- Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
- Low-profile glass helm design
- Low power consumption
- Certified NMEA 2000® connectivity
Specifications:
- Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
- Weight: 0.12kg (0.3lbs)
- Power Consumption: 1.4 Watts
- Network Load: 3 LEN
- Color: Black
- Environmental Protection, Waterproof: Waterproof rating: IPx7
- Environmental Protection, Humidity: Up to 95% RH
- Compass Safe Distance: 300mm (1.0")
- Temperature Operating: -15 to +55°C (5°F to +131°F)
- Temperature Storage: -30 to +70 °C (-22 to +158 °F)
Specifications:
- Type: Parts
- Box Dimensions: 5"H x 6"W x 9"L WT: 0.8 lbs
- UPC: 9420024155127
Owner's Manual (pdf)
