Patriot Docks Patio Roll-In Dock w/ Poly Decking - MW

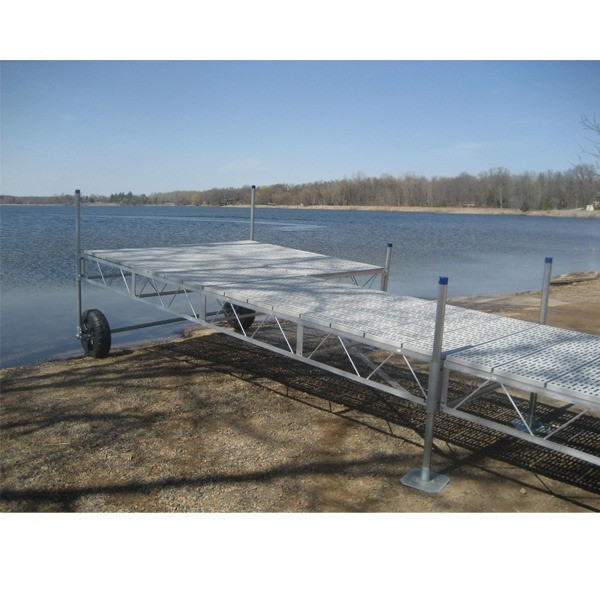

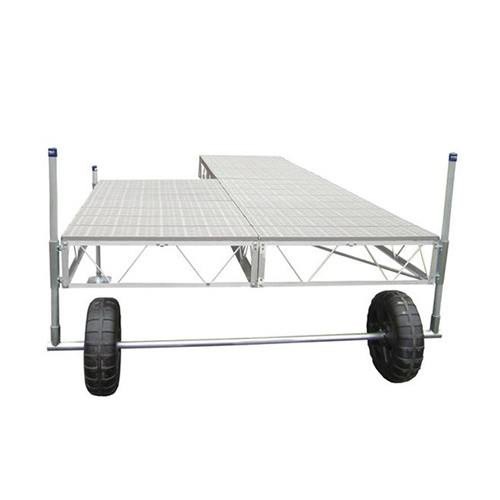

Patriot Docks Patio Roll-In Boat Dock with Gray Poly Decking
Patriot Docks Roll-In Docks are an ideal choice for seasonal recreational use and are lightweight and easy to move when water levels change. Patriot Docks has been a brand trusted by boaters for its high-quality products and commitment to craftsmanship. Their attention to detail sets them apart from the competition.
The Patriot Docks Patio Roll-In Dock kit is designed to withstand constant wear and tear from the conditions. Each roll-in dock is constructed with 12” deep aluminum truss frames with durable welded and bolted connections. The aluminum chords are manufactured with larger aluminum cord rods. The typical rod diameter is â…œ”, and Patriot Docks use 7/16”. Additionally, the pipe is made of 1 ½” 40 electro-galvanized steel and two stainless steel set bolts.

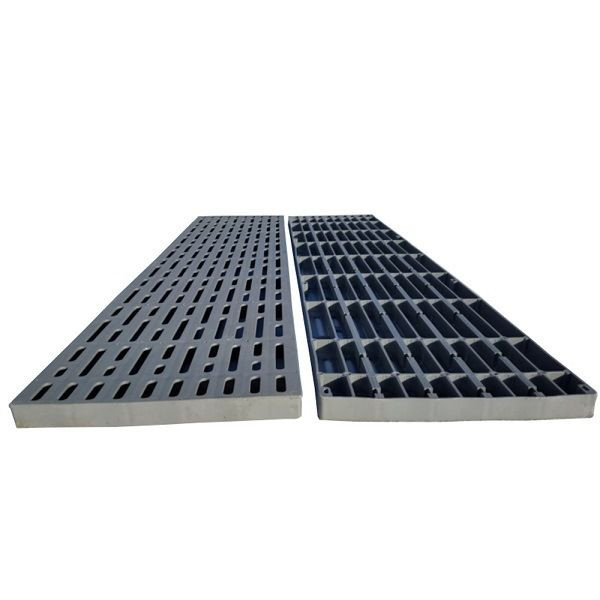

The slotted poly decking design allows for water drainage and stays cool to the touch. The textured surface provides additional traction to safely navigate wet surfaces. The poly panels are polypropylene reinforced with 6061 marine grade aluminum. To ensure a rigid structure the slats are molded into each 1' x 4' poly board. The durable construction holds up to marine environments and offers minimal sag. Each poly board is secured to the 4' x 4' panel using two aluminum stringers. Easy to install simply secure the stringers and drop it into the frame
Each patio roll-in boat dock kit includes everything you need for easy installation and comes with a limited lifetime warranty on the aluminum frame and decking.

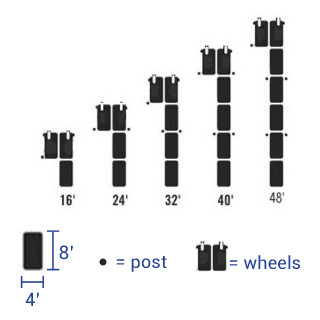

NOTE: Standard post lengths for dock lengths as stated: <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.
16' Patio Roll-In Dock Kit Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (2) End Rail
- (2) Post Brackets
- (2) 4' Posts
- (1) Foot Plates for Posts
- (2) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
24' Patio Roll-In Dock Kit Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (1) End Rail
- (3) Post Brackets
- (3) 4' Posts
- (3) Foot Plates for Posts
- (3) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
32' Patio Roll-In Dock Kit Includes:
- (4) 4 x 8 Frames
- (8) 4 x 4 Deck Panels
- (2) End Rail
- (4) Post Brackets
- (4) 6' Posts
- (2) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
40' Patio Roll-In Dock Kit Includes:
- (6) 4 x 8 Frames
- (12) 4 x 4 Deck Panels
- (2) End Rail
- (6) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) 8' Posts
- (6) Foot Plates for Posts
- (6) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
Click to Download Patriot Docks Assembly Instructions
Click here to see Patriot Dock shipping and delivery agreement & policy
