Patriot Docks Straight Roll-In Dock w/ Tan Poly Decking - MW
Patriot Docks Straight Roll-In Dock w/ Tan Poly Decking

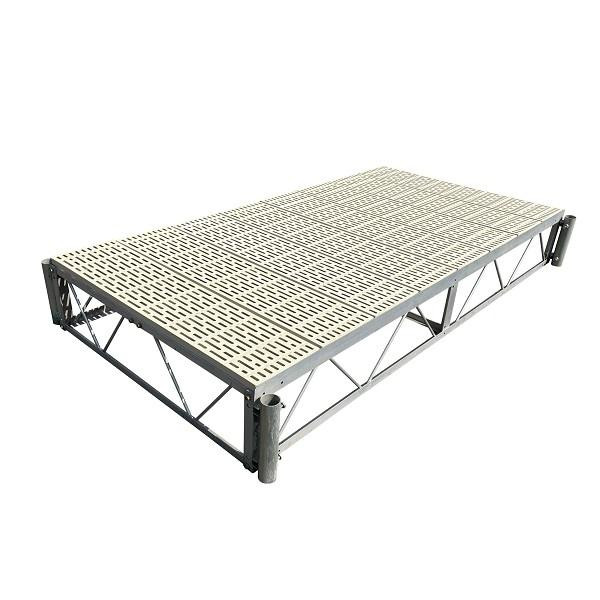

Patriot modular aluminum marine docks combine quality construction and ease of use. Roll-in docks are easy to move in and out of the water with the changing seasons or water levels. Large 24" wheels roll easier over lakeshore terrain. Patriot’s basic aluminum rolling dock packages include one pair of wheels on the lake end of the dock. 12-in. deep aluminum truss frames are expertly crafted with welded and bolted connections. Patriot Docks uses sturdy 7/16”- diameter aluminum chord rods, not â…œ” like most of their competitors. For example, each pipe is constructed from 1-1/2" schedule 40 electro-galvanized steel, not lighter weight steel tubing. For added strength and durability, Patriot Dock's pipe brackets are extra long with two - not one - stainless steel set bolts.

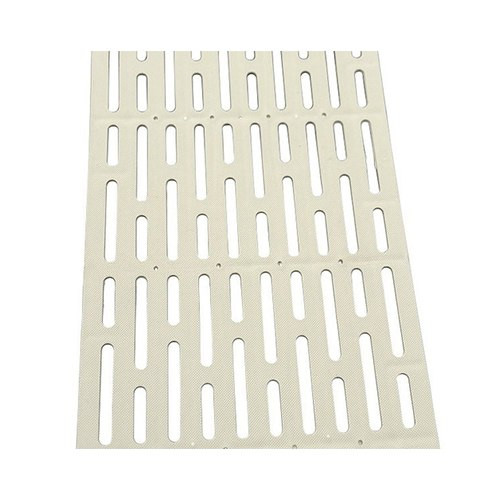

The poly panels are polypropylene reinforced with 6061 marine grade aluminum for a maintenance free dock. To ensure a rigid structure the slats are molded into each 1' x 4' poly board. The durable construction holds up to marine environments and offers minimal sag. Each poly board is secured to the 4' x 4' panel using two aluminum stringers. Easy to install simply secure the stringers and drop it into the frame
- Patriot Docks have a limited Lifetime Warranty on aluminum frame and aluminum decking.
- Maximum span between supports is 16'.
- Side lip on frame to hide decking edge.
Standard post lengths at given dock lengths: <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.
16' Straight Roll-In Dock Kits Includes:
- (2) 4 x 8 Frames
- (4) 4 x 4 Deck Panels
- (1) End Rail
- (2) Post Brackets
- (2) 4' Posts
- (2) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
24' Straight Roll-In Dock Kits Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (1) End Rail
- (4) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (4) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
32' Straight Roll-In Dock Kits Includes:
- (4) 4 x 8 Frames
- (8) 4 x 4 Deck Panels
- (1) End Rail
- (4) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
40' Straight Roll-In Dock Kits Includes:
- (6) 4 x 8 Frames
- (10) 4 x 4 Deck Panels
- (1) End Rail
- (6) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) 8' Posts
- (4) Foot Plates for Posts
- (6) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
Click to Download Patriot Docks Assembly Instructions
Click here to see Patriot Dock shipping and delivery agreement & policy
