AFI 1000 Waterproof Wiper Motor w/ 2.5" Shaft

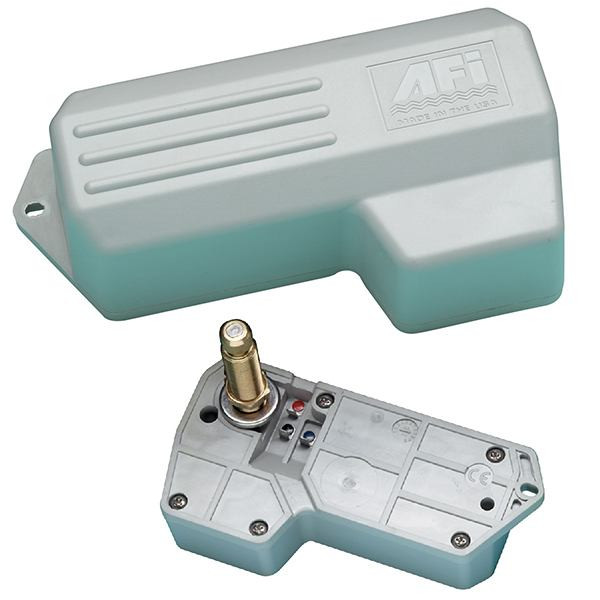

The AFI 1000 Waterproof Wiper Motor is a heavy-duty wiper motor capable of powering 18" deluxe arm and 18" deluxe combination at sweep sets of 80 degrees or less, or 16" deluxe arm and 16" deluxe blade combinations at a swwp set of 110 degrees. This motor features a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic.
Specifications:
- 12V
- .625" diameter shaft
- 2.5" Shaft length
- Stall torque: 55 in-lbs
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps

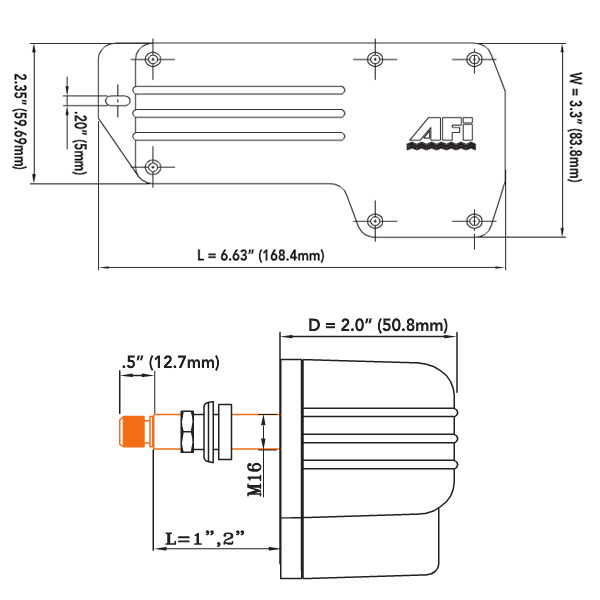

- 6.625" L x 3.375" W x 2" D
Features:
- Heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- RF shielded circuitry
Options Available:
- 80° Sweep
- 110° Sweep
