Powerwinch 12V Marine Boat Trailer Winch 915, 9500 lb - MW

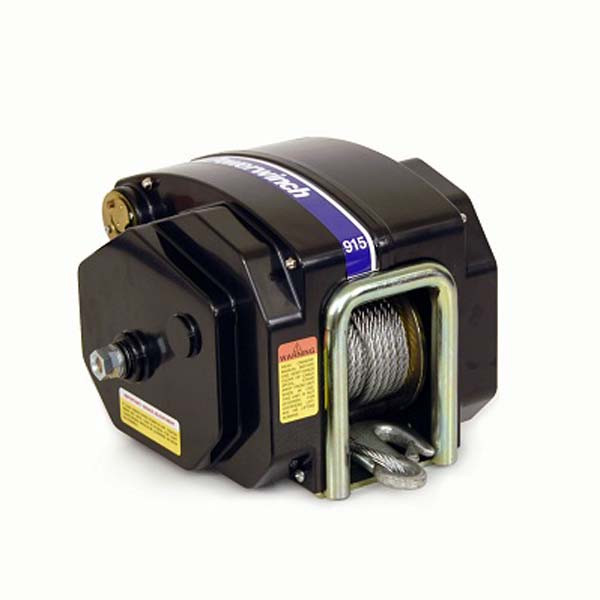

Powerwinch 12V Marine Boat Trailer - Model 915
Model 915 12V power-in/power-out allows you to control your boat as it is lowered into the water. The 915 comes complete with a 10' remote control cord and switch. It also features a pulley block for double-line applications, emergency hand crank and a 60 amp standard wiring harness.
Why power-in/freewheel-out . . . or power-out? With the power-in/freewheel-out system, the electric motor pulls the boat onto the trailer yet has a clutch release that allows gravity to float the boat into the water with ease.
Click here to download Powerwinch 915 Marine Boat Trailer Owners Manual
Click here to download Powerwinch 915 Marine Boat Trailer Replacement parts and wiring diagram
Product Features:
- Max. boat weight: 9500 lbs
- Vertical lift capacity of 3200 lbs, double line capacity of 7500 lbs. (not to be used as a hoist)
- Power-in/power-out control
- Line speed 10 FPM
- 12 volt operating power
- 10' remote control cord and switch
- 40' x 7/32" cable
- Manual hand crank
- Pulley block for double-line applications
- 60 amp standard wiring harness
Product Specifications
- Max. Boat Weight - 9500 lbs
- Line Speed - 10 FPM
- Vertical Lift Capacity - 3200 lbs
- Remote Control - No
- Light - No
- Double Line Capacity - 5900 lbs
- Gear Ratio - 450:1
- Power Source - 12V
- Circuit Breaker - 60 amp
- Unit Weight - 40 lbs
- Depth - 10"
- Width - 10"
- Height - 8"
- Cable Length and Diameter - 40' x 7/32"
