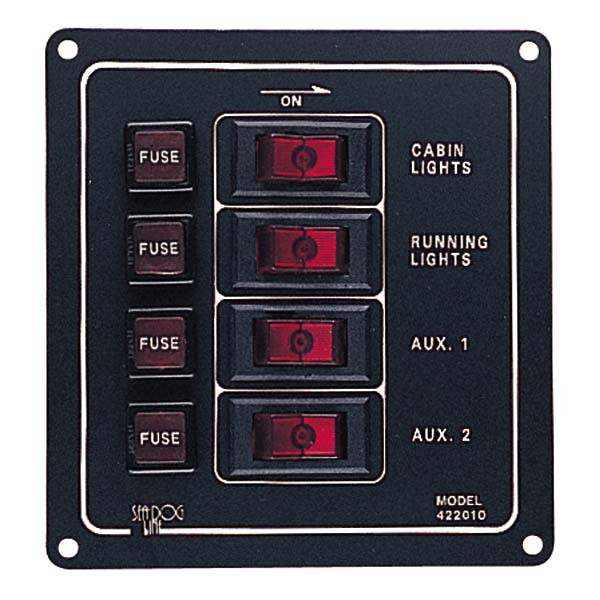

Sea Dog Aluminum Vertical 4 Gang Switch Panel
Sea Dog brings a anodized aluminum Vertical 4 Gang Switch Panel that looks great on any boat. Featuring four Illuminated 15 Amp 12 Volt On/Off rocker switches and four 10 Amp 12 Volt fuse holders.
Product Features:
- 12 Volts DC
- 10 Amps per individual circuit
- 37 Amps total
- Four Illuminated on/off rocker switches
- Four 12VDC fuse holders
- Anodized Aluminum construction

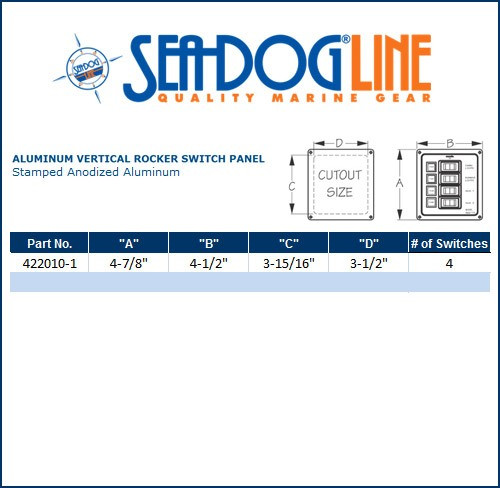

Product Specifications:
- Total Dimensions: 4-7/8" x 4-1/2"
- Cutout Dimensions: 3-15/16" x 3-1/2"
Installation Instructions:
- Connect the positive terminal of the battery (12 Volt only) to the bar identified with a "+" tag.
- Connect the negative terminal of the battery (12 Volt only) to the bar identified with a "-" tag.
- Connect the positive wire of each individual circuit to the #2 spade on the corresponding rocker switch on the panel.
- Connect the remaining wire or negative wire of each circuit to the common ground of the boat, if so equipped, or directly to the negative terminal of the battery or the negative bar of the panel. NOTE: Do NOT attach any additional wires to the remaining terminal on the fuse holder.
- Your Sea Dog switch panel is supplied with 8 fuses: (2) 3 Amp, (4) 5 Amp, and (2) 10 Amp. (WARNING: Do not use fuse rated over 10 Amps)
Click here to download Sea Dog Aluminum Vertical 4 Gang Switch Panel Installation Instructions
