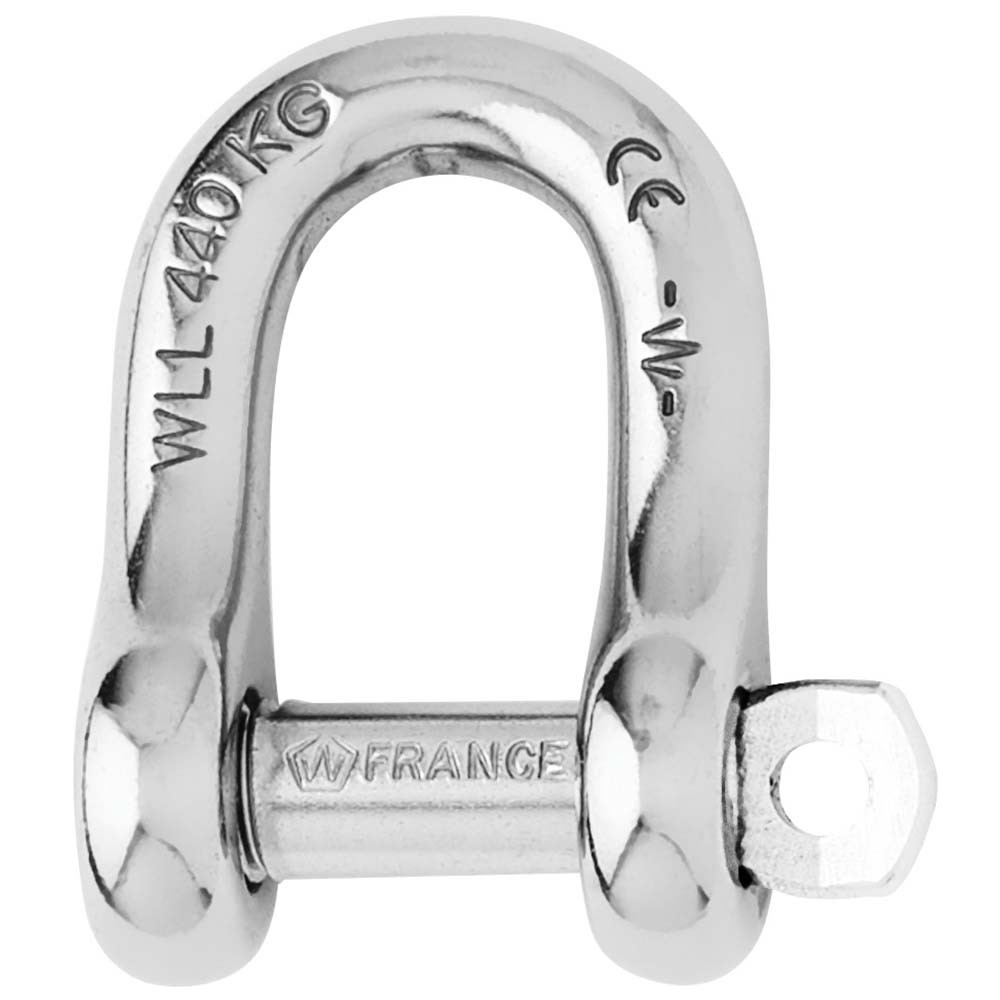

Captive Pin D Shackle - Diameter 12mm - 15/32"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 4580
- WLL (lb) 3080
- Breaking load (lb) 15430
- Weight (lb) 0.414

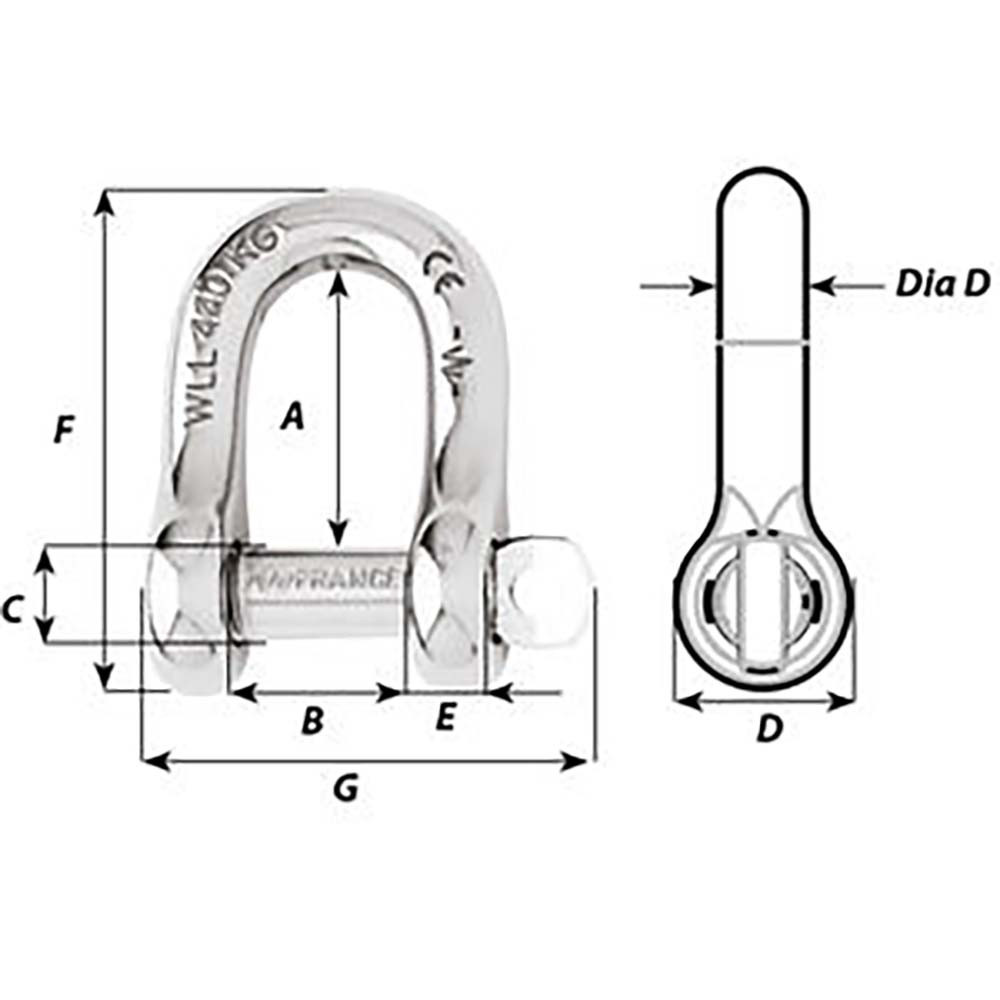

Dimensions (see 2nd image):
- A (inch) 1-17/32"
- B (inch) 15/16"
- C (inch) 33/64"
- D (inch) 15/16"
- D diameter (inch) 15/32"
- E (inch) 7/16"
- F (inch) 2-23/32"
- G (inch) 2-7/16"
