Lenco 101XDS Short Replacement Trim Tab Actuator - MW
Lenco 15058-001 101XDS Short Replacement Trim Tab Actuator
Lenco Actuators are durable and maintenance-free. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance and high strength for long life. Lenco's ballscrew design creates a more reliable trim tab actuator that is twice as powerful compared to typical hydraulic actuators. This 12V actuator features a tough, high-torque motor that easily pushes 500lbs.
Built for marine environments, this actuator has an improved O-ring design and an integrated wiper seal. The waterproof Deutsch connector eliminates the possibility of water intrusion and makes for easy plug and play installation. This trim tab kit contains all necessary mounting hardware along with a 6' wire. This actuator has a 3/8" top and end hole.
- Lenco Part#: 15058-001
- OEM Part#: 20402-002
Trim Tab Actuator Construction Details:
- Top Cap Design
- Stronger top cap mounting clevis design.
- Torx Screws
- New & improved pressure-tight torx screws
- Thrust Bearing
- Molded-in thrust bearing design
- Housing Wall
- Thicker and stronger motor housing wall
- Over-Molded Cable
- Over-molded cable providing a stronger, tighter seal
- Upper Bracket
- Upper mounting bracket with gland seal
Specifications:
- Top Cap Hole: 3/8"
- End Hole: 3/8"
- Stroke Length: 2-1/4"
- Voltage: 12V
- Wire Length: 6'

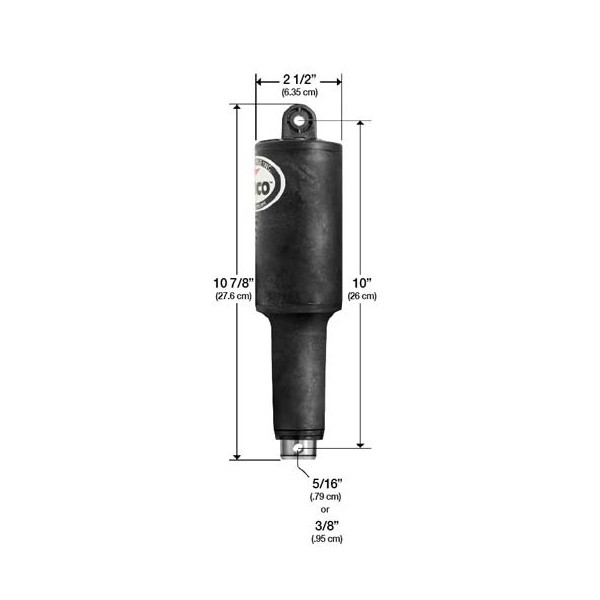

- Overall Length Tip-to-Tip: 10-7/8"
Features:
- Waterproof
- Ball Screw Design.
- Deutsch Connectors
- Durable
- Insant Response
- High-Impact, ultraviolet resistant nylon
Click here for Lenco 101XDS Trim Tab Actuator Replacement Guide
