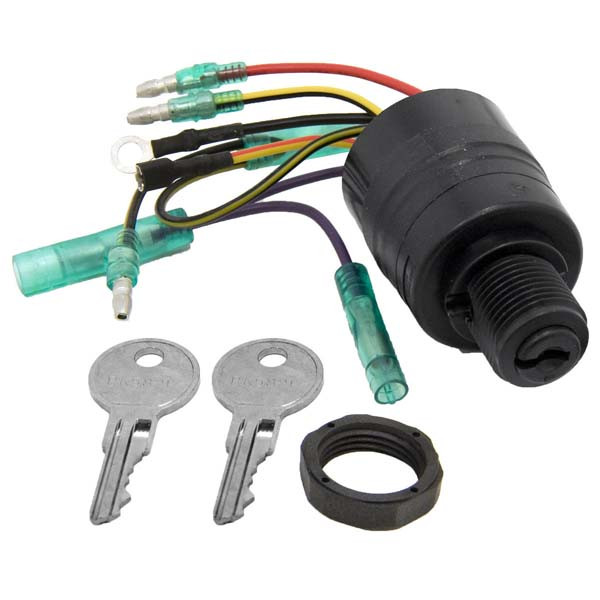

Sierra MP51090 Mercury Ignition Switch 3 Position
Sierra MP51090 Mercury Ignition Switch replaces Mercury Marine OEM Part # 87-17009A5.
Features:
- Exact OEM replacement installation
- Heavy duty potted construction
- Minimal bleed per circuit
- Molded umbrella type key
- Push to choke
- Maximum corrosion protection - eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
Specifications:
- Back Up Nut: Not Required
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Color Coded Wire Leads/Potted
- Switch Positions: Off - Run - Start
- TYPE: 3 Position Magneto
