Humminbird Ethernet Cables - MW

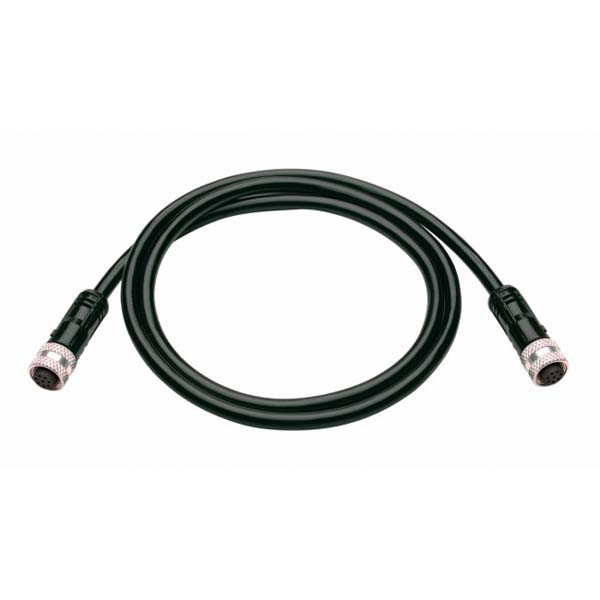

The Ethernet Cable is a cable that allows the connection of two Ethernet capable units to be connected.
Shared Information
GPS - Waypoints, routes, tracks and position. You cannot share mapping
Auxiliary Temperature
Auxiliary Speed
Sonar
Units can only share information on sonar from the lowest featured model and only like frequencies. Below are examples of what will not share. See the Specs section for detailed information.
Side Imaging sonar will not share Side Imaging sonar/views with a non-side imaging unit.
Example: 1198c SI with an 858c. It will only share standard 2D sonar.
Down Imaging sonar from a Side Imaging unit will not share with a Down Imaging unit.
Example: 1198c SI with a 788ci HD DI. It will NOT even share standard 2D sonar.
Down Imaging sonar from a Down Imaging unit will not share with a standard sonar unit:
Example: 788ci HD DI with a 788ci HD. It will NOT even share standard 2D sonar.
Down Imaging sonar from a Down Imaging unit will not share with a Side Imaging unit:
Example: 788ci HD DI with an 1198c SI. It will NOT even share standard 2D sonar.
What will share?
Side Imaging and Down Imaging sonar from a Side Imaging unit will share Side Imaging and Down Imaging sonar with another Side Imaging unit.
Example: 1198c SI with a 998c SI, an 898c SI or a 798ci SI.
Down Imaging sonar from a Down Imaging unit will share Down Imaging sonar with another Down Imaging unit.
Example: 788ci HD DI will share with another 788ci HD DI.
For Use with
- 1157c
- 1158c
- 1158c DI
- 1197c SI
- 1198c SI
- 778c HD
- 788ci HD
- 788ci HD DI
- 798ci HD SI
- 858c
- 858c HD
- 858c DI
- 858c HD DI
- 898c SI
- 898c HD SI
- 958c
- 958c HD
- 958c DI
- 958c HD DI
- 998c SI
- 998c HD SI
Cable Details
| Primary Unit - 1198 1197, 998, 898 | |||
| Side Imaging | Down Imaging | 2D Sonar | |
| 1198c | Y | Y | Y |
| 1197c | Y | Y | Y |
| 1158c | N | N | Y |
| 1158c DI | N | N | N |
| 1157c | N | N | Y |
| 998c & 998c HD | Y | Y | Y |
| 958c & 958c HD | N | N | Y |
| 958c DI & 958c HD DI | N | N | N |
| 898c & 898c HD | Y | Y | Y |
| 858c & 858c HD | N | N | Y |
| 858c DI & 858c HD DI | N | N | N |
| 798c HD | Y | Y | Y |
| 788ci HD DI | N | N | N |
| 788ci HD | N | N | Y |
| 778c HD | N | N | Y |
| Primary Unit - 788ci HD DI, 858c DI, 958c DI, 1158c DI | |||
| 1198c | N | N | N |
| 1197c | N | N | N |
| 1158c | N | N | N |
| 1158c DI | N | Y | Y |
| 1157c | N | N | N |
| 998c SI & 998c HD SI | N | N | N |
| 958c & 958c HD | N | N | N |
| 958c DI & 958c HD DI | N | Y | Y |
| 898c SI & 898c HD SI | N | N | N |
| 858c & 858c HD | N | N | N |
| 858c DI & 858c HD DI | N | Y | Y |
| 798c | N | N | N |
| 788ci HD DI | N | Y | Y |
| 788ci HD | N | N | N |
| 778c HD | N | N | N |
