BoatBuckle Transom Tie Down Straps - MW

Name: BoatBuckle Transom Tie Down Straps - MW
Brand: Boat Buckle (MW)
SKU: BBB-08893
Availability: InStock

SKU BBB-08893 MPN F08893 UPC 79111088931 MFR Boat Buckle (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Boat Tie Downs

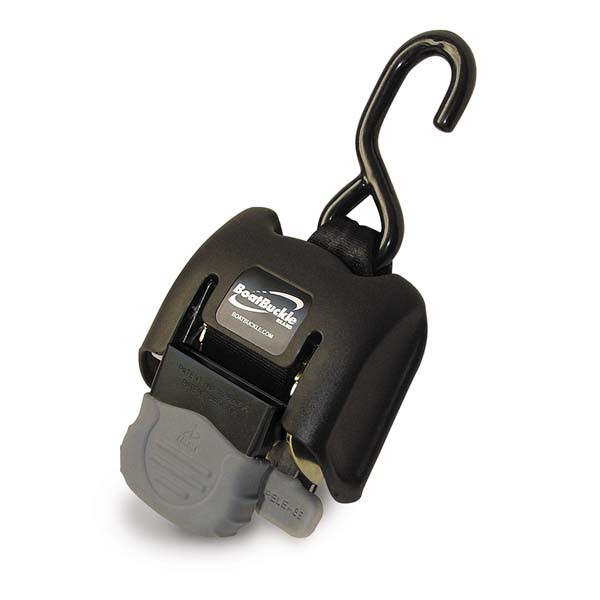

BoatBuckle Retractable Transom Tie Down Straps

The BoatBuckle F08893 Transom Tie-Downs are the ultimate tie-down system in convenience, style, and innovation. The BoatBuckle Transom Tie-Downs feature automotive-style webbing, anti-corrosive construction, and sturdy coated hooks. Built for durability, the two-inch, self-retracting web is made with seat belt quality polyester. The BoatBuckle G2 Transom Tie Down has a stronger breaking strength than competitors with 2500 lbs. for each strap. Easy to use with convenient one hand operation. These tie down straps are sold as a pair and are easy to install. A mounting bolt is included for permanent one-bolt installation.

Features:

Sleek, contoured styling
Comfortable Sur-Grip rubber coated handle and release lever
One-touch web release
Easy access dual release lever
Simple, one-hand operation
Adapts to most mounting angles
Includes installation hardware
Comes as a Pair

Specifications:

F08893 Standard
Length: Up to 43"
Break Strength: 2,500 lbs./each
SWL: 833 lbs./each

How to Install BoatBuckle Transom Tie Down Straps

Use trailer's existing mounting tab, or drill a 7/16" hole into the trailer frame.

Note: Before drilling, contact your trailer manufacturer to ensure proper and safe mounting locations.

Be sure the tie-down point is between 12"-41" from mounting hole. Do not mount otherwise.
Using bolt, washer and locknut provided, attach BoatBuckle to trailer frame.
Before tightening, the BoatBuckle should be swiveled left or right to ensure a straight-line pull to the transom eye.
Once in line, tighten securely. Do not over tighten bolt. Maximum recommended torque: 45 ft. lbs.
BoatBuckle should be mounted to trailer frame in such a position to enable the web to have has much straight-line pull as possible.
Web angle should not exceed a +/- 30 degree angle from vertical when in use.

Click to Download BoatBuckle Transom Tie Downs Installation Instructions
