T-H Marine CMC PT-130 Electric Hydraulic Tilt and Trim

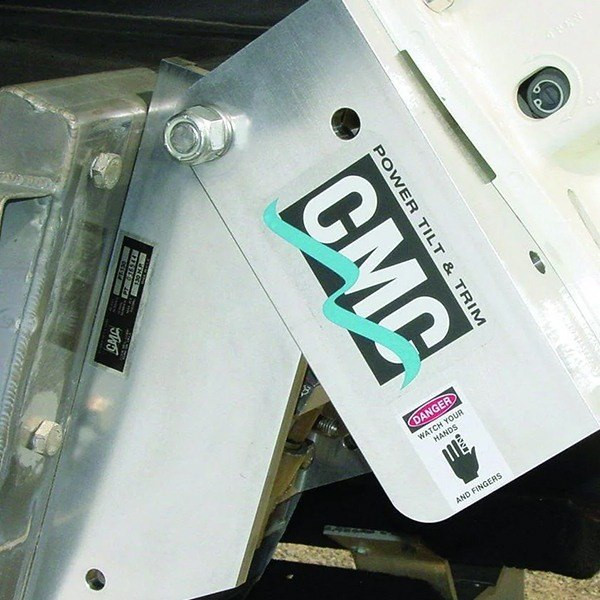

The CMC PT-130 is a tilt and trim unit designed for use with 130HP motors and smaller. Constructed from 1/2" 6061 T6 extruded aluminum with stainless steel hardware for outstanding corrosion resistance in marine environments. The PT-130 offers a 6" set back for excellent performance with enhanced stability. The standard BIA bolt hole pattern and included hardware make installing your tilt and trim a breeze.

Features:

No Gauge
Aluminum Construction with Stainless Steel Fasteners.
Standard B.I.A. Bolt Hole Pattern.
Convenient Adapter Kit
Motor Mounting Bolts Included

Tilt and Trim Specifications:

Power Rating: Up to 130HP
Set Back: 6"
Trim: 20°
Tilt: 90°
Electric Hydraulic Actuator Rating: 7853lbs. of Thrust

Includes:

Hydraulic PT-130 Unit
Wire Assembly
Up-Down Toggle Switch
Stainless Steel Mounting Hardware

Standard CMC PT-130 Installation Information

The CMC PT-130 is predrilled to fit standard B.I.A. outboard motor mounting hole configurations. If your boat and motor are not pre-drilled, some may be required. For standard application it is important to consider that your motor will be set back from the transom by 6" This allows you to mount your motor higher than you can when it is mounted to the transom.

The information below is sourced from the owner's manual found at the bottom of the page. It is recommended to consult the full manual before installation.

You will need to lift the motor in some fashion with a properly rated lifting device.

For proper outboard motor lifting procedures check your motor manual or with your dealer.

Attach the lifting device to the motor and make sure the motor is supported safely
Remove the four nuts that mount the motor to the transom of the boat
Swing the motor away form the boat taking care not to damage any wires or cables
Mount the PT-130 on the transom with the tilt high enough for clearance of motor and transom when fully tilted
Fasten the unit to the transom with nuts previously used for the motor, making sure the flat washer and lock washer are before the nut
The PT-130 is designed for 130 HP and smaller motors. It mounts standard bolt patterns using the pre-drilled holes and included hardware.

Click here for CMC PT-130 Power Tilt and Trim Owner's Manual
