BEP AC Circuit Breaker Panel w/Digital Meters, 16SP 2DP AC230V ACSM Stainless Steel Horizontal
Available @
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
This product may be available for purchase online. For pricing and availability, click the
"Ask a Question about this Product" button below to speak with our team.
Let us know your shipping destination and required quantity, and we will have a personalized quote ready for you.

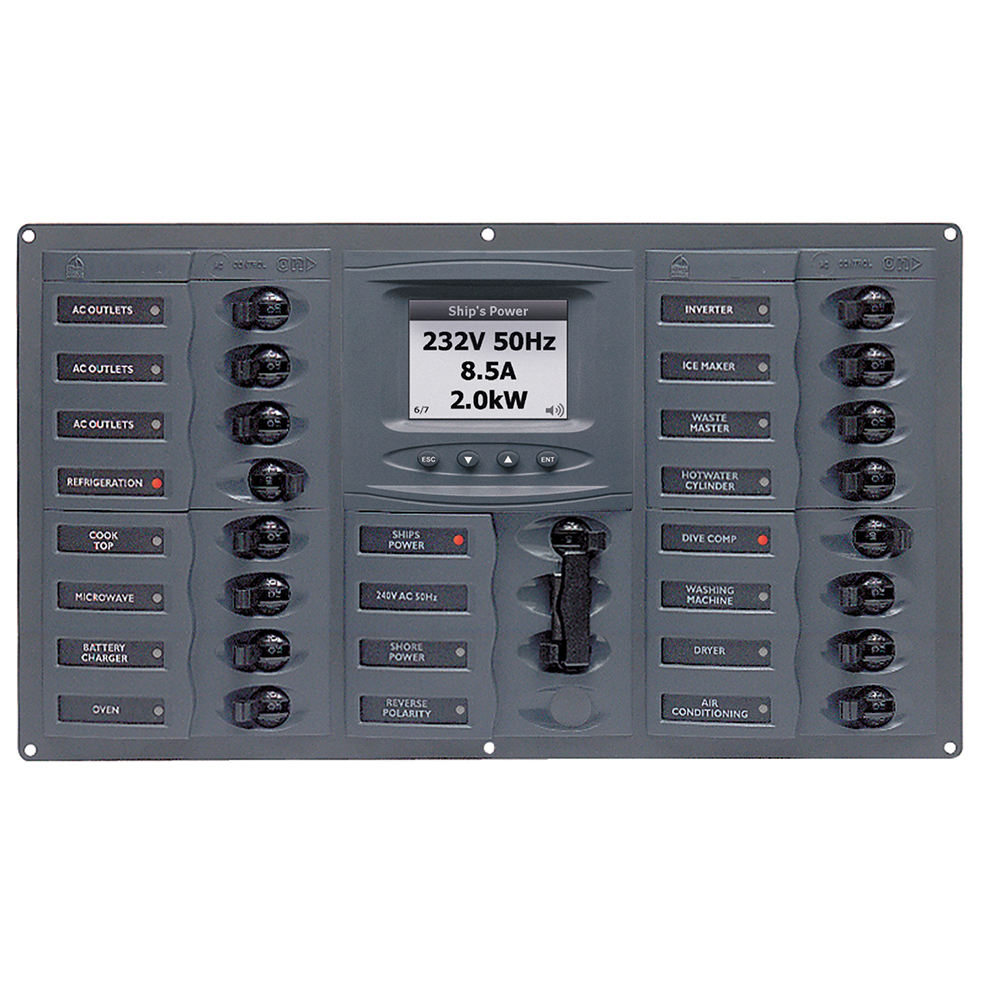

AC Circuit Breaker Panel with Digital Meters, 16SP 2DP AC230V ACSM Stainless Steel Horizontal
Features:
- Supplied with transducer
- Reverse polarity indicator
- Double pole mains input CBs with side lockout
- Digital meter shows volts, amps and frequency
- LED wired to indicate live panel with mains breaker either on or off
- AC source selector ensures no cross over between AC inputs (ship or
- shore power)
Specifications:
- Total Positions: 16 Loads + 2 Inputs
- Circuit Breakers: 1x 5A, 5x 10A, 7x 15A, 2x 20A, 1x 25A + 1x 20A, 1x 50A
- Nominal Voltage: 230V AC
- Maximum Amperage: 50A
- Dimensions: 7.9" X 13.9" X 2.5"
- Neg Bus: IS-6MM-2
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 16" L × 11" W × 5" H |
|---|---|
| Shipping Weight | 7.35 lb |
| Country of Origin | NEW ZEALAND |
| Harmonized Code | 8537109070 |
