Maretron Micro Double-Ended Cordset - 0.5M
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse 13
FL, Warehouse 7
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
20 available
Ships from our New Jersey warehouse. Order Today
to Columbus, OH
and receive it by
Wednesday, Jul the 8th -
Friday, Jul the 10th
$31.69

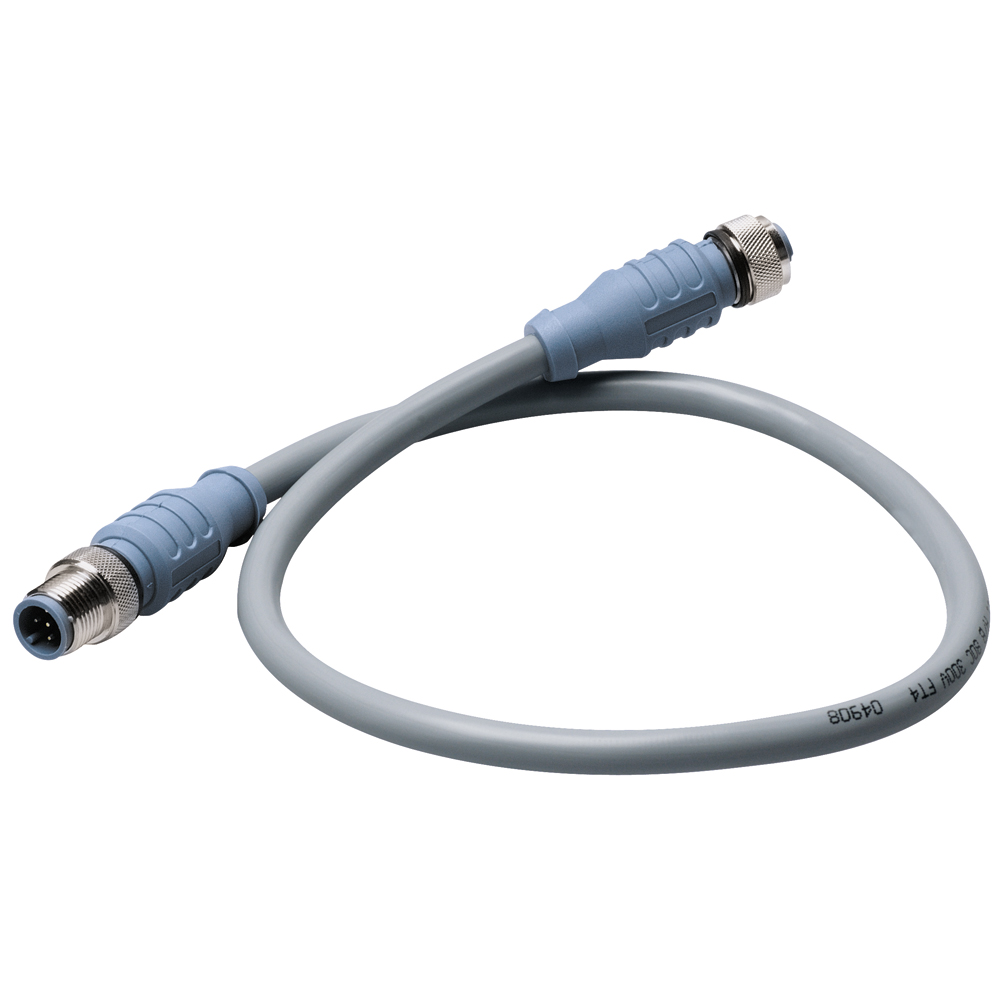

Micro Double-Ended Cordset - 0.5M
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59" Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V Cable
- Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
- (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Product Specifications
| Dimensions | 7" L × 5" W × 1" H |
|---|---|
| Shipping Weight | 0.13 lb |
| Country of Origin | MEXICO |
| Harmonized Code | 8544.42.00.00 |
